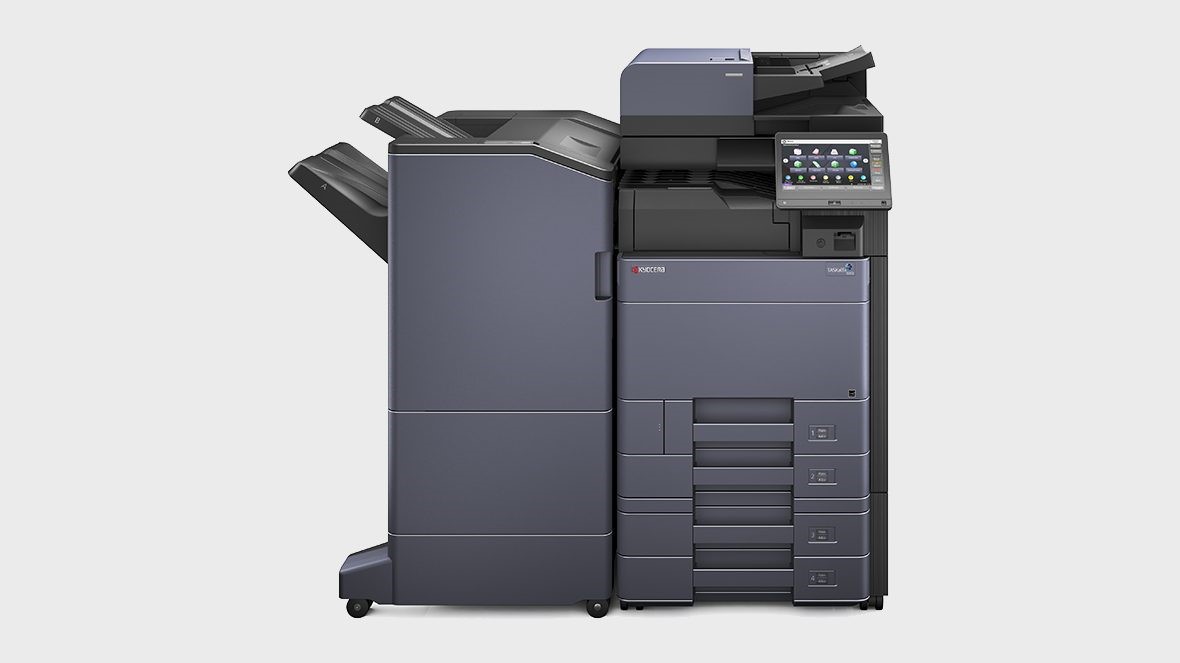

Technology: KYOCERA TASKalfa Laser Monochrome, HyPAS solution platform
Touch panel size: 256.5 mm (10.1 inch) full-colour touch panel display, speaker for job notification, 15° - 90° swivel mounted
Engine speed (pages per minute): Up to 50/25 ppm A4/
A3; Duplex print speed: 50 page per minute, A4; Duplex
copy speed: 50 pages per minute, A4
Resolution: 4800dpi equivalent x 1200dpi (print), 600 x
600 dpi (scan/copy)
Warm-up time from power on: Approx. 17 seconds or less
Time to first print: 4.3 seconds or less
Time to first copy: 4.5 seconds or less (DP);
3.7 seconds or less (Platen)
CPU: QorIQ T1024 (Dual Core) 1.2GHz
Memory (standard max.): 4 GB RAM + 8 GB SSD +
320 GB HDD
Standard interface: Standard interface: USB 3.0 (Super-
Speed USB), 4 x USB Host Interface, Gigabit Ethernet
(10BaseT/100BaseTX/1000BaseT, IPv6, IPv4, IPSec,
802.3az support), optional Wi-Fi (IEEE 802.11b/g/n), 2
eKUIO slots, for optional internal print server or for
optional fax system, slot for optional Wireless LAN, Slot
for optional SD Card, NFC tag
Dimensions (W x D x H): Main unit: 602 x 665 x 790 mm
Weight: Main unit: Approx. 83 kg
Power source: AC 220 V ~ 240 V, 50/60 Hz
Power consumption:
Printing: 740 W
Copying: 740 W
Ready mode: 50 W
Low power mode: 50 W
Sleep mode: 0.7 W
Noise (sound pressure level ISO 7779 measurement
distance of 1 meter):
Copying/Printing: 53.1 dB (A)
Stand-by: 35 dB (A)
Safety standards: GS, TÜV, CE.
This unit is manufactured according to ISO 9001 quality
standard and ISO 14001 environmental standard.
PAPER HANDLING
All paper capacities quoted are based on paper thickness
of max. 0.11 mm. Please use paper recommended by
KYOCERA under normal environmental conditions.
Input capacity:
150-sheet multipurpose tray, 52 – 300 g/m 2 (Banner
136 – 163 g/m 2 ), A6R – SRA3 (320 x 450 mm), Custom (98 x
148 to 297 x 457.2 mm), Banner max. 304.8 x 1,220 mm;
2x 500-sheet universal paper cassette, 52 – 300 g/m 2 ,
Upper cassette A6R up to A4R, lower cassette A6R up to
SRA3,
Max. input capacity with options: 7,150 sheets A4
Duplex unit: Duplex as standard supports
A6R – SRA3, 64 – 256 g/m 2
Output capacity: Standard 500 sheets face-down, max.
output capacity 4,300 sheets
PRINT FUNCTIONS
Controller language: PRESCRIBE
Emulations: PCL6 (PCL5c / PCL-XL), KPDL3 (PostScript 3
compatible), PDF Direct Print, XPS Direct Print and
OpenXPS
Operating systems: All current Windows operating
systems, Mac OS X Version 10.9 or higher, UNIX LINUX,
as well as other operating systems on request
Fonts/barcodes: 93 outline fonts (PCL), 136 fonts (KPDL3),
8 fonts (Windows Vista), 1 Bitmap font, 45 types of one-
dimensional barcodes plus two-dimensional barcode
(PDF-417)
Print features: Encrypted PDF Direct Print, IPP printing,
e-mail printing, WSD print, secure printing via SSL,
IPsec,SNMPv3, quick copy, proof and hold, private print,
job storage functionality
Mobile printing support: KYOCERA Mobile Print app for
iOS and Android, AirPrint, Mopria, NFC, Direct Wi-Fi,
Google cloud print
COPY FUNCTIONS
Max. original size: A3 / Ledger
Continuous copying: 1 – 9999
Zoom range: 25 – 400% in 1% steps
Preset magnification ratios: 5R/5E,
Digital features: Scan-once-copy-many, electronic sort,
2in1, 4in1, image repeat, page numbering, cover mode,
booklet copy, interrupt copy, form overlay, margin shift,
auto cassette change, Skip blank page, ID copy
Exposure mode: Auto, manual: 16 steps
Image adjustments: Text + photo, text, photo,
Diagram/map
SCAN FUNCTIONS
Functionality: Scan to e-mail, Scan to FTP, Scan to SMB,
Scan to USB Host, Scan to box, Network TWAIN, WIA/WSD
scan
Scan speed: 220 ipm (300 dpi, A4 duplex, with DP-7130)
in b/w and colour
Scan resolution: A4 - 600dpi x 600dpi , 400dpi x 400dpi
, 200dpi x 400dpi, 300dpi x 300dpi , 200dpi x 200dpi ,
200dpi x 100dpi; 256 greyscales per colour
Max. scan size: A3, Ledger
Original recognition: Text, photo, text + photo, Light Text
/ Fine Line, optimised for OCR
File types: TIFF, PDF, PDF/A, JPEG, Open XPS, Encrypted
PDF, High compression PDF, PDF/A-1a/b, PDF/A-2a/b/u,
Searchable PDF(Option), MS Office file(Option)
FAX FUNCTIONS (OPTIONAL)
Compatibility: ITU-T Super G3
Modem speed: Max. 33.6 kbps
Transmission speed: Max. 3 seconds (JBIG)
Scanning speed: 2.0 seconds or less
Address book: 2000 entries
Maximum original size: A3, Banner up to 1,600 mm
Compression method: JBIG, MMR, MR, MH
Features: Network faxing, rotate transmission,
rotate reception, encrypted transmission and reception,
duplex fax reception, memory reception, mailbox, remote
diagnostics, polling transmission and reception, broad-
cast, Optional Internet-fax, dual fax with second fax
system 12
